Features:
- Designed for 868MHz and 915MHz applications
- Linear Polarization
- Omni-Directional (PCB dimension dependent)
- Flexible placement
- Low profile, miniature and light weight
- Optional: custom cable length

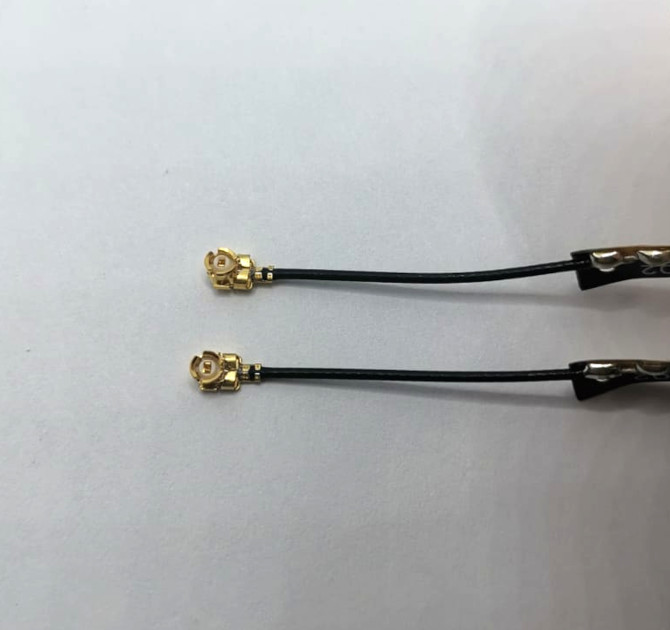

- IPEX MHF1 plug right angle connector, female socket
- RoHS compliance
Applications:
- sensors Tracking devicess
- developer_board Wireless Modules
- screenshot_monitor Remote Monitoring
Specification

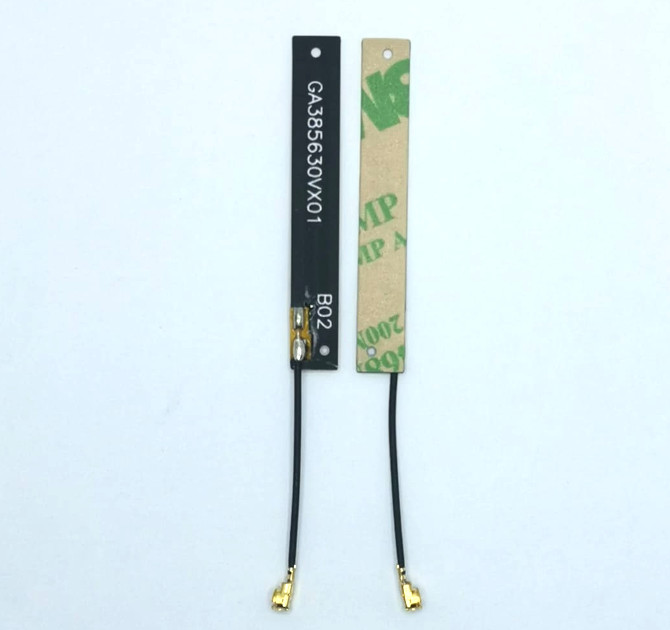

| Model | GA385630VX01 |
|---|---|
| Frequency | 868MHz / 915MHz Antenna optimization by matching is needed |
| Impedance | 50 Ohms |
| Polarization | Linear |
| Imput Power | 2 Watts Max |
| Radiation Pattern | Omni-directional |
| Dimension | 38.8 x 5.6 x 0.3 mm |
| Weight | 0.5g |
| Connector | IPEX |
| Cable Length / Diameter | 120mm / 1.13mm |
| Temperature Range | -40 to +85 degree C |
| Humidity | 40% to 95% RH |
Click Here for Product Specification
