Features:
  • FPC High Efficiency Dual Band WIFI Antenna or Bluetooth Antenna
  • Linear Polarization
  • Omni-Directional
  • RF cable with connector
  • Default cable length 250mm (Optional)
  • Miniature and light weight
  • RoHS Compliance

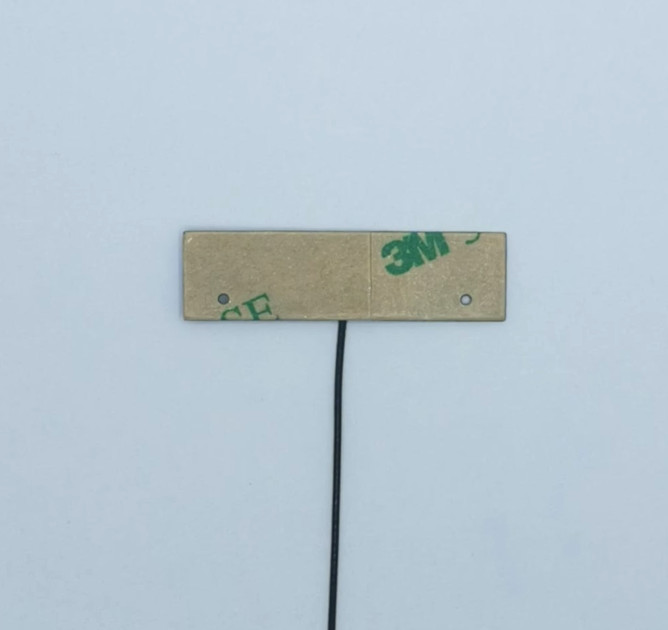

  • 3M300LSE Adhesive
  • Cable and connector types can be customized
Applications:
  • smartphone Smart Phones
  • tablet_android Tablets
  • laptop Laptops
  • sensors Tracking Devices¬†
  • directions_car Automotives¬†
Specification
ModelGADWIFI-DI02
Frequency (MHz)2400-25004900-6000
S11(dB)< -10< -13
VSWR< 1.22< 1.21
Peak Gain (dBi)3.267.02
Average Total Efficiency (%)71.970.7
Average Gain (dB)-1.43-1.5
PolarizationLinear
Impedance50 Ohms
Radiation PatternOmni-directional
Maximum Power5 Watts
Dimension (mm)34.5 x 9.5 x 0.3
Coxial Cable Length250mm, Dia 1.13mm

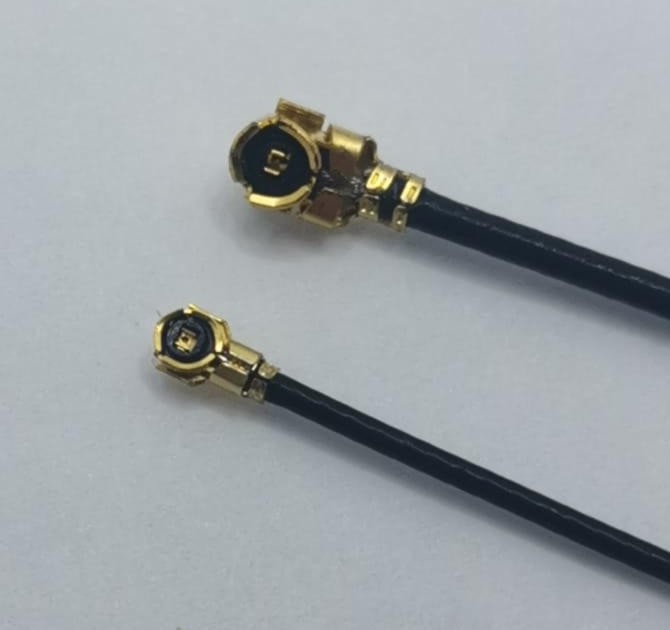

ConnectorIPEX
Temperature Range-40 to +85 degree C
Humidity40% to 95% RH
Reference S11 (Placed on 3mm PCABS Material) with cable length of 250mm
Click Here for Product Specification

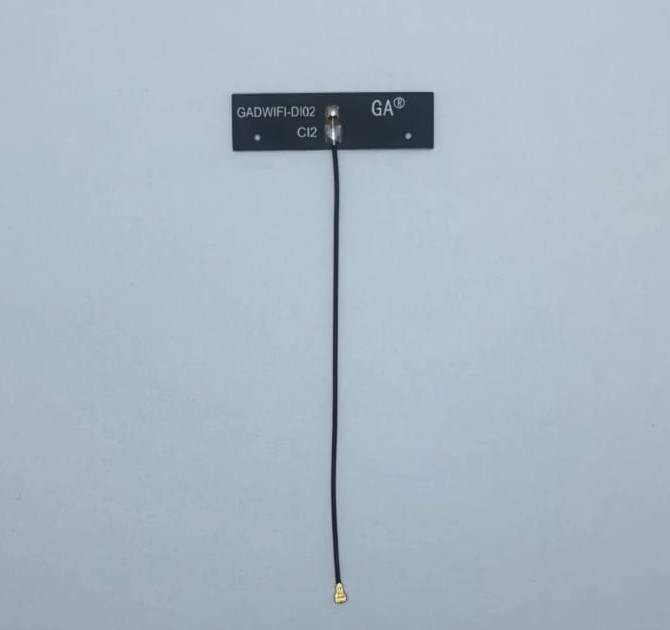

GADWIFI-DI02 FPC Front
