Features:
- Designed for GPS (1575.42MHz) Glonass (1602MHz) and BeiDou (1561.1MHz) applications
- High efficiency
- Linear Polarization
- Omni-Directional (PCB dimension dependent)
- Minimum PCB Clearance
- Flexible placement on PCB edge
- SMD mounting
- Low profile, miniature and light weight

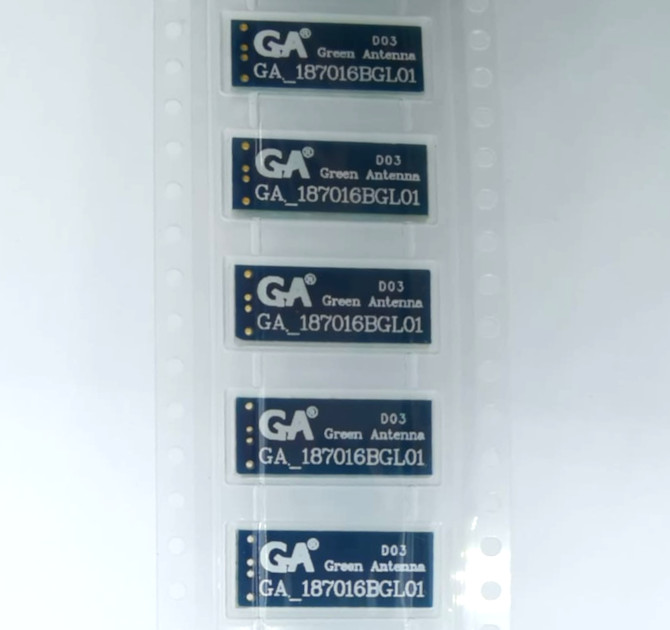

- Tap and reel packaging
- RoHS compliance
Applications:
- smartphone Smart Phones
- tablet_android Tablets
- laptop Laptops
- sensors Tracking Devices
- gps_fixed GPS Modules
Specification
| Model | GA187016BGL01 |
|---|---|
| Frequency | 1561-1602MHz |
| S11 | < -10dB |
| VSWR | < 1.92:1 |
| Peak Gain | 3.02dBi @1575MHz |
| Polarization | Linear |
| Impedance | 50 Ohms |
| Efficiency | 85% @1575MHz |
| Radiation Pattern | Omni-directional |
| Dimension | 18 x 7 x 1.6 mm |
| Weight | 0.4g |
| Temperature Range | -25 to +80 degree C |
| Humidity | 50% to 95% RH |

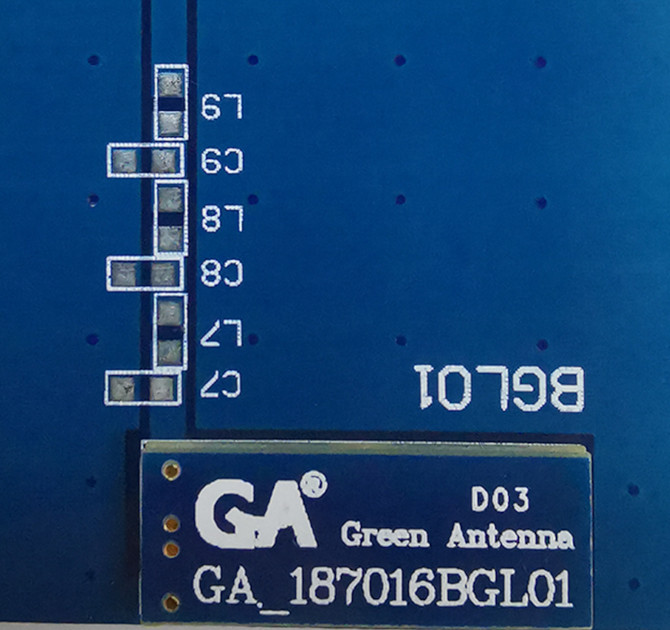

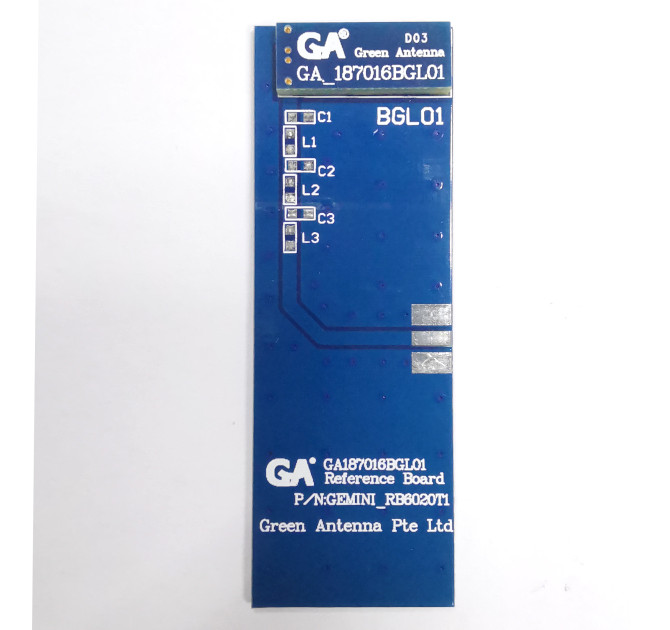

Antenna performance with GEMINI-RB6020T1 Reference Board
| Peak Gain | 3.02dBi @1575MHz |
|---|---|
| Average 3D Gain | -0.67dBi |
| Average Efficiency | 85% @1575MHz |
| S11 | <-10dB |
| VSWR | <1.92:1 |

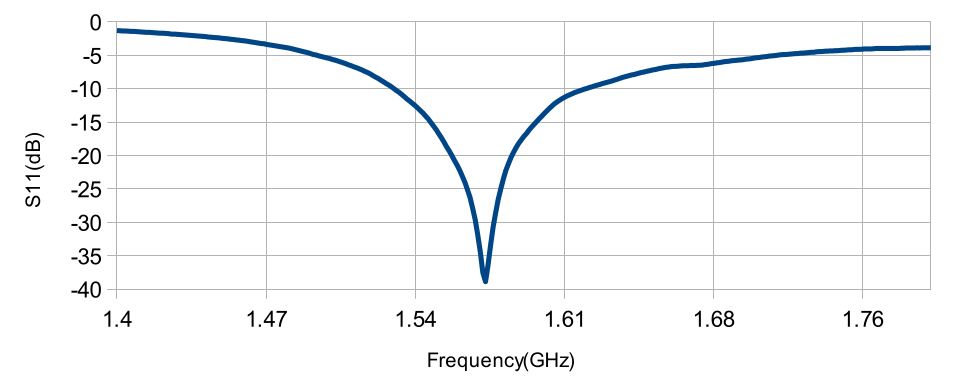

Return Loss with GEMINI_RB6020T1 Reference Board

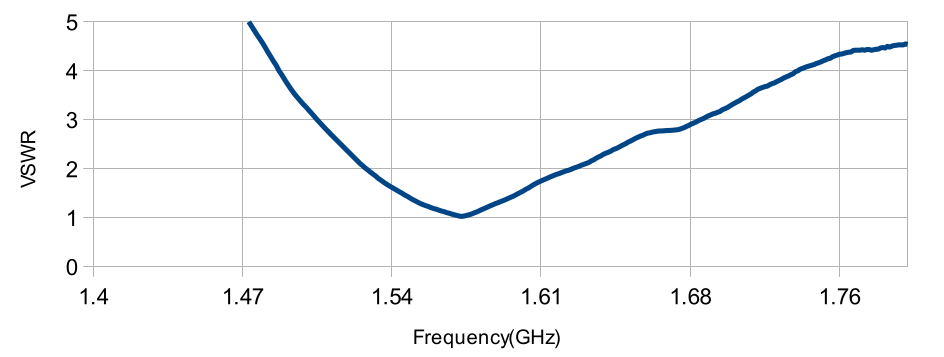

VSWR with GEMINI_RB6020T1 Reference Board
Click Here for Product Specification
