Features:
- Designed for 5.855GHz to 5.925GHz applications
- High efficiency
- Linear Polarization
- Omni-Directional (PCB dimension dependent)
- Minimum PCB clearance
- Flexible placement on PCB edge
- SMD mounting
- Low profile, miniature and light weight

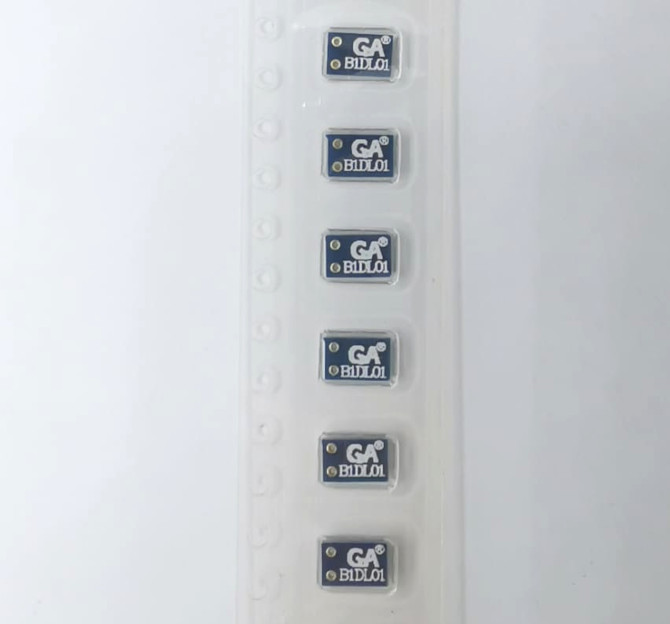

- Tape and reel packaging
- RoHS compliance
Applications:
- smartphone Smart Phones
- tablet_android Tablets
- laptop Laptops
- sd_storage Wireless Dongles
- developer_board Wireless Modules
- sensors Sensors
- directions_car Automotives
Specification
| Model | GA523408DL01 |
|---|---|
| Frequency | 5.855 - 5.925 GHz |
| S11 | < -10dB |
| VSWR | < 2:1 |
| Peak Gain | 0.4dBi |
| Polarization | Linear |
| Impedance | 50 Ohms |
| Efficiency | 60% |
| Radiation Pattern | Omni-directional |
| Dimension | 5.2 x 3.4 x 0.8 mm |
| Weight | 0.04g |
| Temperature Range | -25 to +80 degree C |
| Humidity | 65oC 95% RH |
Antenna Performance with Reference Board
| Peak Gain | 0.4dBi |
|---|---|
| Average 3D gain | -2dBi |
| Average Efficiency | 60% |
| S11 | <-10dB |
| VSWR | <2:1 |
All results are measured from frequency range of 5.855GHz to 5.925GHz on reference board.
Return Loss with Reference Board
VSWR with Reference Board
