Features:
- Designed for 2.4GHz applications: Bluetooth, WIFI(802.11b/g), ZigBee, Wimax(2.3GHz and 2.5GHz) and etc.
- High efficiency
- Linear Polarization
- Omni-Directional (PCB dimension dependent)
- Minimum PCB clearance
- Flexible placement on PCB edge
- SMD mounting
- Low profile, miniature and light weight

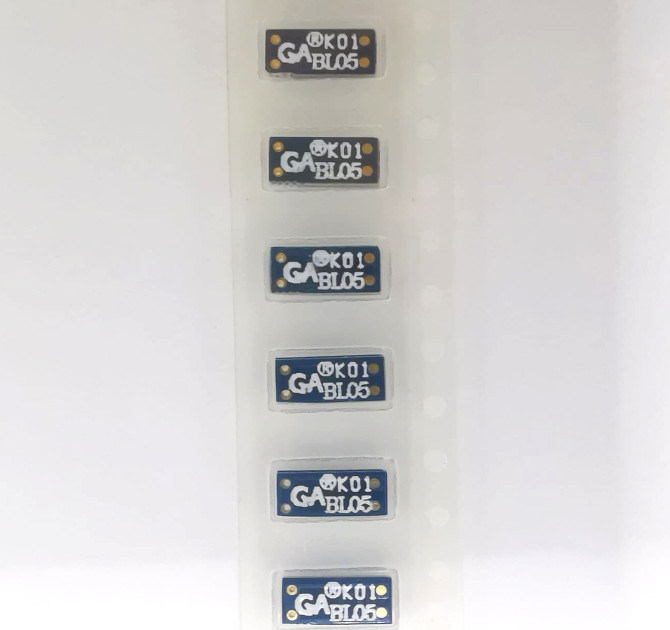

- Tape and reel packaging
- RoHS compliance
Applications:
- smartphone Smart Phones
- tablet_android Tablets
- laptop Laptops
- sd_storage Wireless Dongles
- developer_board Wireless Modules
- sensors Sensors
- directions_car Automotives
Specification
| Model | GA083408BL05 |
|---|---|
| Frequency | 2.4-2.5 GHz |
| S11 | < -7.8dB |
| VSWR | < 2.4:1 |
| Peak Gain | 0.97dBi |
| Polarization | Linear |
| Impedance | 50 Ohms |
| Efficiency | 50% |
| Radiation Pattern | Omni-directional |
| Dimension | 8 x 3.4 x 0.8 mm |
| Weight | 0.04g |
| Temperature Range | -25 to +80 degree C |
| Humidity | 65oC 95% RH |
Antenna Performance with Reference Board RB-BL05-GIVI
| Peak Gain | 0.97dBi |
|---|---|
| Average 3D gain | -2.91dBi |
| Average Efficiency | 50% |
| S11 | <-7.8dB |
| VSWR | <2.4:1 |
All results are measured from frequency range of 2.4GHz to 2.5GHz on reference board.
Reference Board Part No.: RB-BL05-G1V1
Reference Board Size: 60 x 20mm
Return Loss with Reference Board RB-BL05-G1V1
VSWR with Reference Board RB-BL05-RIVI
