Features:
- Designed for 2.4GHz and 5GHz applications: Bluetooth, ZigBee, Wimax(2.3GHz and 2.5GHz) and WIFI (802.11a/b/g/n)
- Linear Polarization
- Omni-Directional (PCB dimension dependent)
- Minimum PCB Clearance
- Flexible placement on PCB edge
- SMD mounting
- Low profile, minature and light weight
- Tape and reel packaging
- RoHS compliance
Applications:
- smartphone Smart Phones
- tablet_android Tablets
- laptop Laptops
- sd_storage Wireless Dongles
- directions_car Automotives
Specification

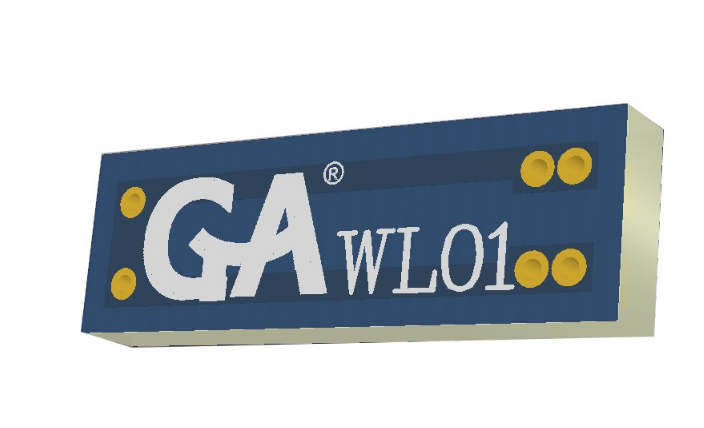

| Model | GA123416WL01 | |
|---|---|---|
| Frequency | 2.4-2.5GHz | 5.15-5.85GHz |
| S11 | < -6 dB | < -10 dB |
| VSWR | < 3:1 | < 2:1 |
| Peak Gain | 2.1 dBi | 4.76 dBi |
| Efficiency | 60% | 60% |
| Polarization | Linear | |
| Impedance | 50 Ohms | |
| Radiation Pattern | Omni-directional | |
| Dimension | 12 x 3.4 x 1.6 mm | |
| Weight | 0.12g | |
| Temperature Range | -25oC to +80oC | |
| Humidity | 65oC 95% RH | |
Click Here for Product Specification
